Pinnacle Engineering, a leading manufacturer of ground anchors, offers a wide range of durable and reliable solutions to secure structures across various industries. We manufacture and supply types of earth anchors such as Helical Anchor, Disk Anchor, Bust Expanding Anchor, Manta Ray Utility Anchor, Pole Key Anchor, Rock Anchor, and Power Hub Screw Anchor according to customers’ designs.
Our ground anchors are made from high-grade materials and incorporate advanced technology, ensuring exceptional performance, longevity, and resistance to corrosion.
The cross plate anchor is used to provide stability and support to several human-made and natural constructions. Also, making holes drilled by power diggers comes under an essential feature of cross plate anchors.
Formed up of two structural plates, these cross plate anchors are shaped for reinforcement to support and hold the nut from the forged eye rod; a retainer on the bottom of the anchor is available, which makes it easier to grip.
FEATURES

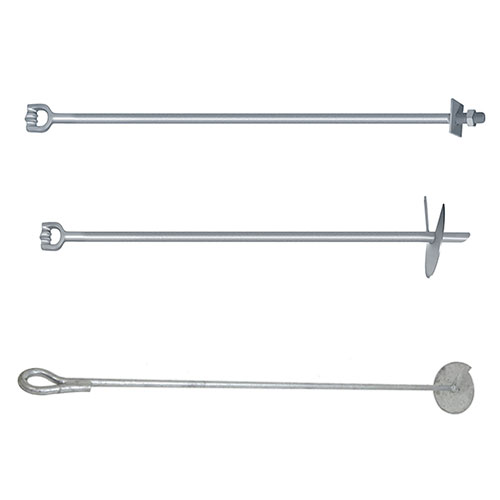

Guy anchor made up of galvanized steel material is also called guy wire anchor rod, guy anchor rod, to attach guy wires on the overhead power line. This power line hardware creates a connection between the guy wire and the ground.

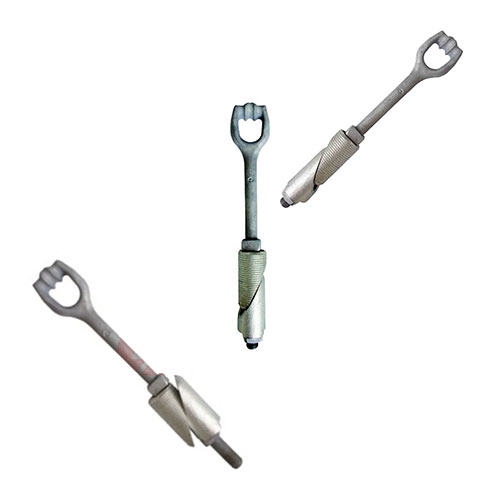

Expanding rock anchors provide strength and stability to rock and concrete structures, protecting them against problematic movement and collapse.
Inserted directly into the solid mass and expanded once inside, they transfer tension from the exterior to the interior of the structure, providing sturdy reinforcement at its core.
This strong and durable expanding rock anchor is crafted from treated steel and iron, which meets the necessary testing specifications. expanding rock anchor boasts a triple guy eye, making it suitable for up to 3 guy strands. Its eye grooves are also contoured to minimise wear and tear to slack.
Product Features:
Dimensions:

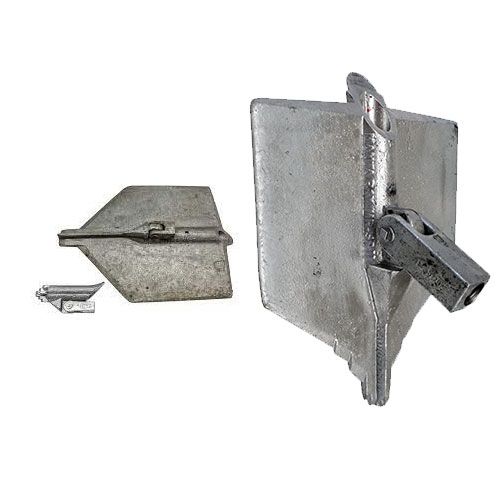

The Manta Ray Anchor is an earth tension utility anchor designed to be driven directly into the earth, it completely dispenses with the hassle and stress of digging and drilling holes.
The Manta ray anchor is widely and generally used by the telecoms, construction, and utility industries all over the globe. It is an innovative development in anchoring technology, that provides a very fast, efficient, safe, and easy solution to a range of anchoring needs.
The Manta ray anchor is an extremely versatile anchor that can also be installed into a wide range of soil types including glacial till, caliche, and eroding rock.
The Manta Ray Anchor is designed to be used with Protected anchor rods, fiber washers, and cap nuts. It comes with fully threaded rods, ready to be field cut and coupled. It is also compatible with standard eye nuts.
Manta ray drop forged eye distribute pulling stresses uniformly over individual strands of guy wire and keep the guy wire from spreading, kinking, or bending.
The no wrench screw anchor is a type of earth anchor; it functions by basically guying cables or wires within utility poles, which is comprised of an angle-cut tip, welded helix and an anchor rod of forged-eye.
To ensure that the anchor is screwed on the ground, both the thimble eye and triple eye anchors have a rod with a wide opening to withhold the turning bar.
When installed, the no wrench screw anchor reduces the holding capability by about 10-20%, while this failure is to stick with 5 degrees of installation alignment with the guying mass will reduce the strength. Also, these ratings are only valid for anchors that are installed correctly.
